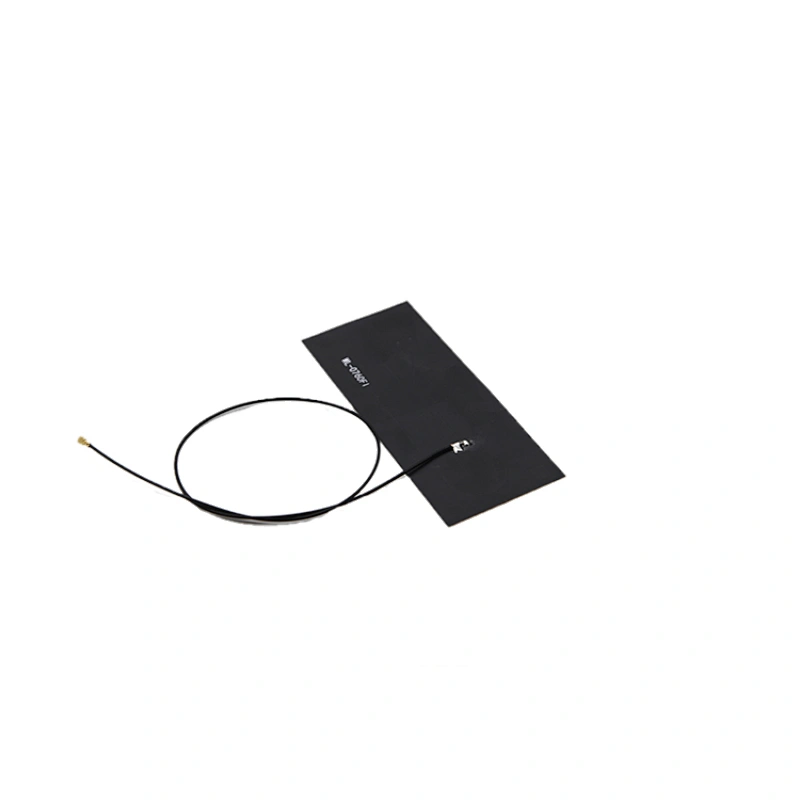

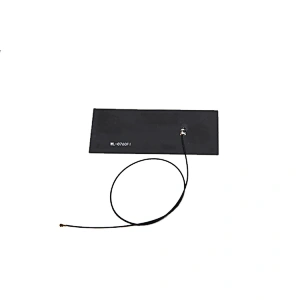

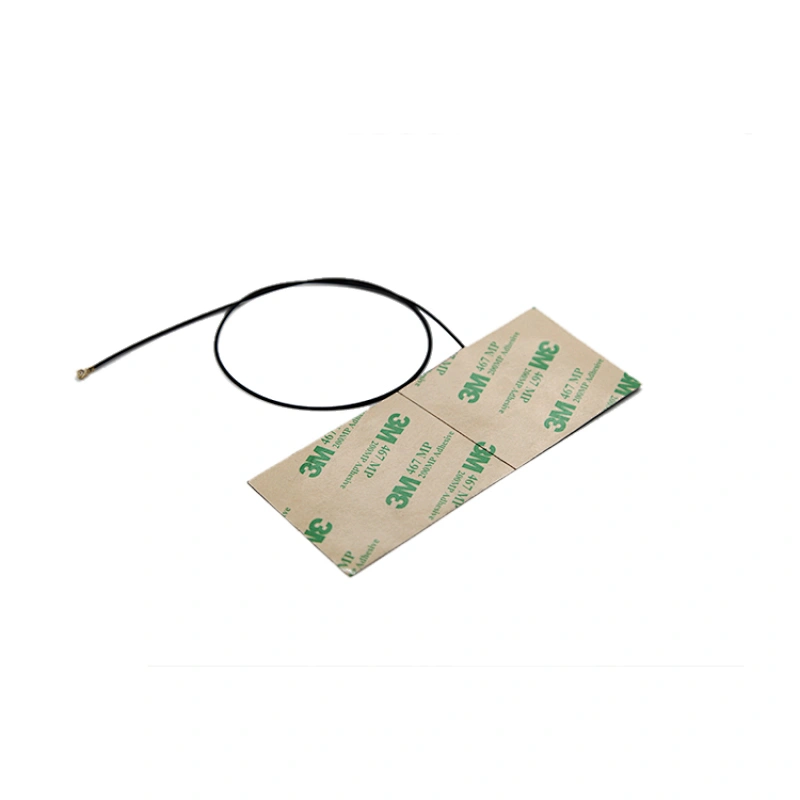

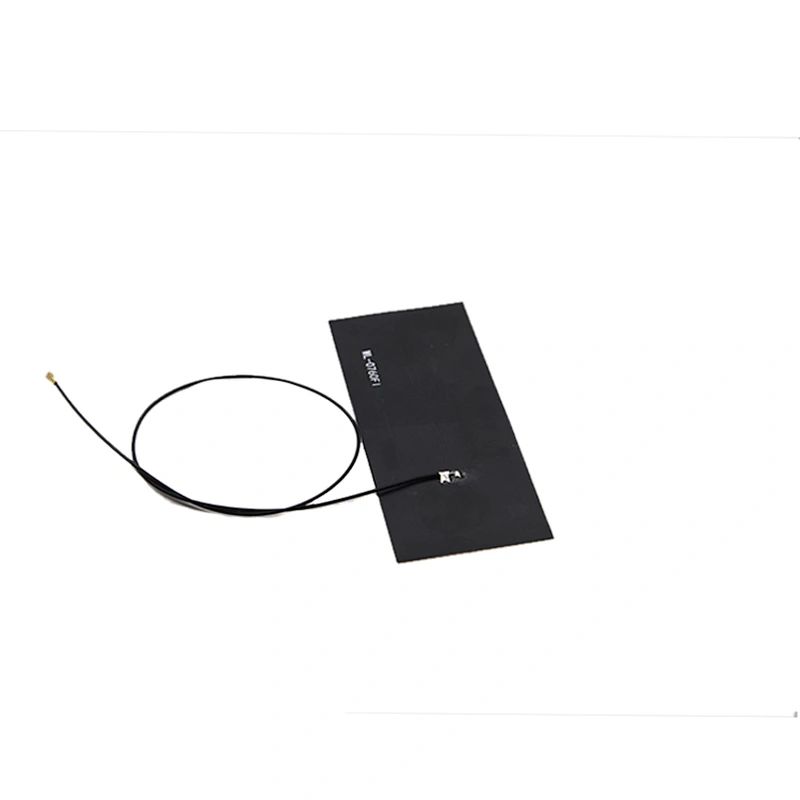

50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector
50*120mm 5G FPC Internal Antenna with IPEX Connector

50*120mm 5G FPC Internal Antenna with IPEX Connector

Model NO.
WL-5GIF50120-100
Quantity:

Category

5G FPC Antenna
ModelWL-5GIF50120-100
Frequency Range-MHz700-6000
Gain-dBi6.5
V.S.W.R≤2
Nominal Impedance-Ω50
PolarizationVertical
Maximum Power-W50
Dimensions-mm50*120
ConnectorIPEX or Customized
Operating Temperature-40℃~+80℃
Storage Temperature-40℃~+85℃
Environmentally Friendly

ROHS Compliant
