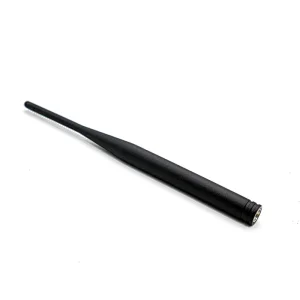

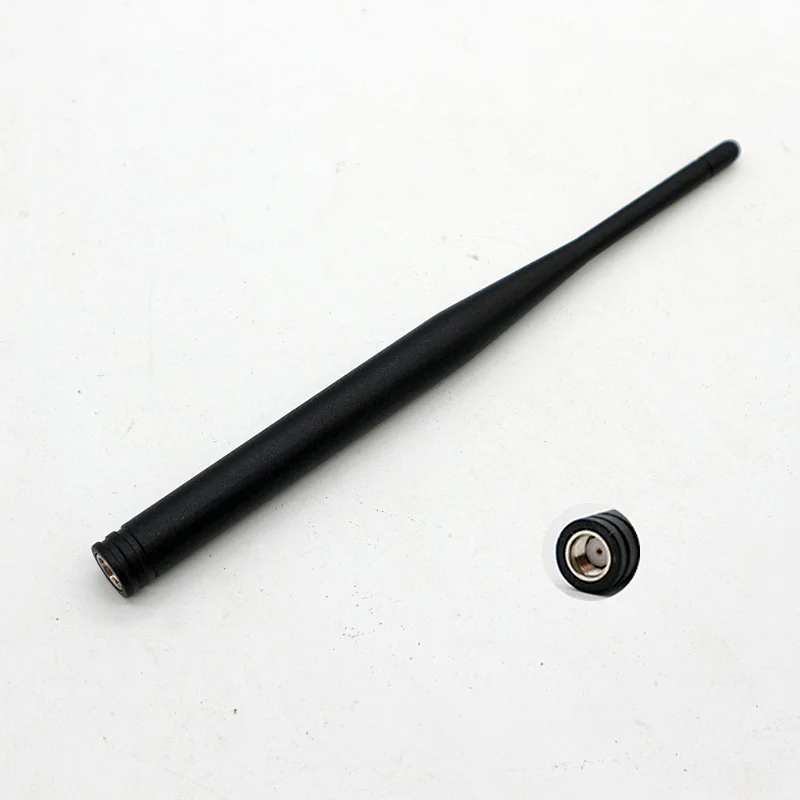

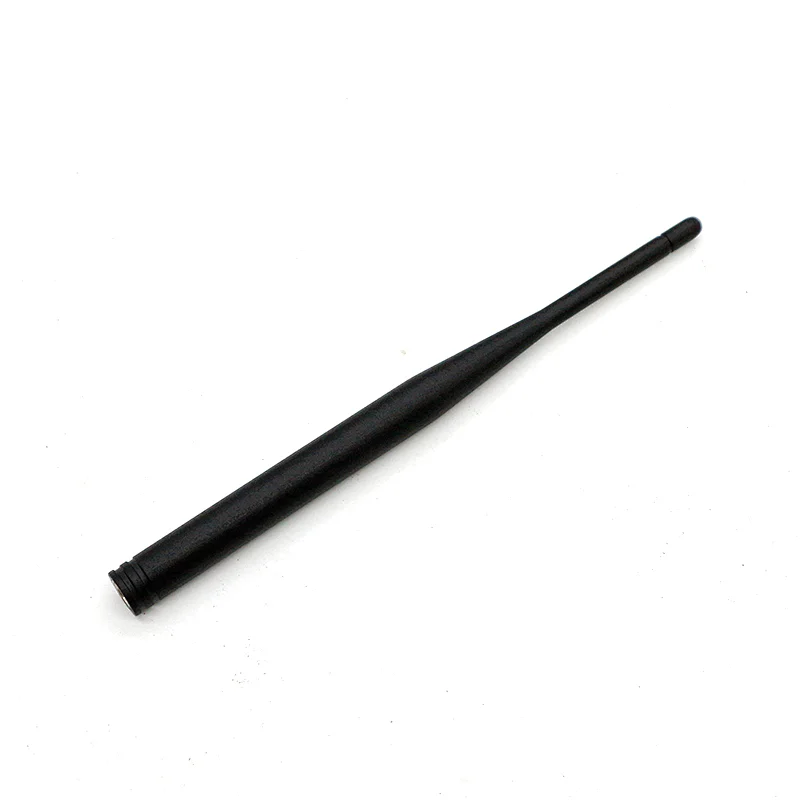

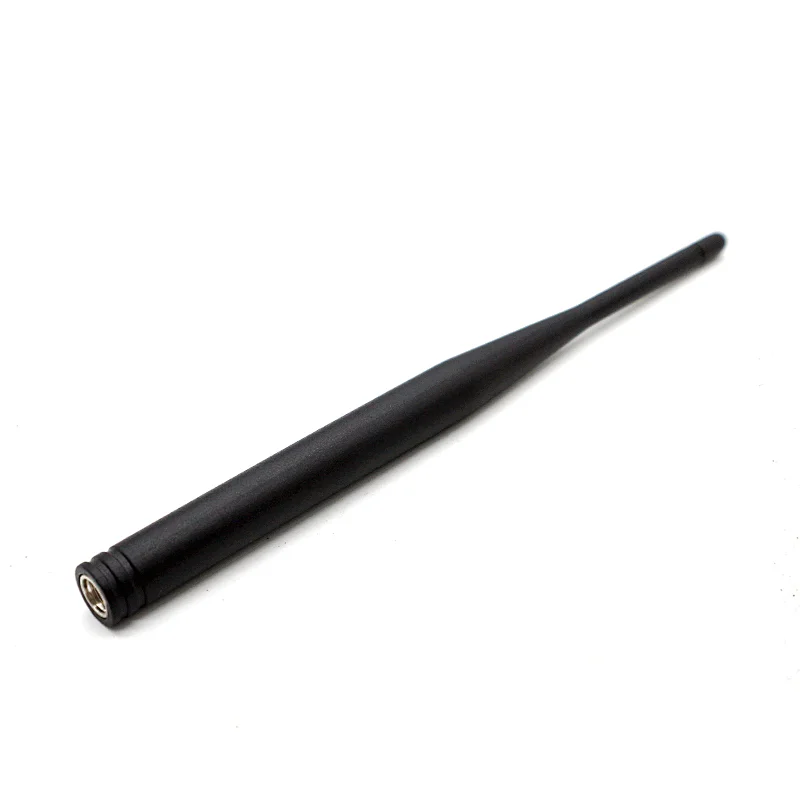

165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna
165mm GSM Waterproof Rubber Duck Antenna

165mm GSM Waterproof Rubber Duck Antenna

Model NO.
WL-GSME165
Quantity:
CategoryGSM Rubber Duck Antenna
ModelWL-GSME165
Frequency Range-MHz900/1800/2100
Gain-dBi5
V.S.W.R≤2
Nominal Impedance-Ω50
PolarizationVertical
Maximum Power-W50
Dimensions-mm165
ConnectorSMA or Customized
Operating Temperature-40℃~+80℃
Storage Temperature-40℃~+85℃
Environmentally FriendlyROHS Compliant

Send Message

*
* clear input
* clear input

Related Products

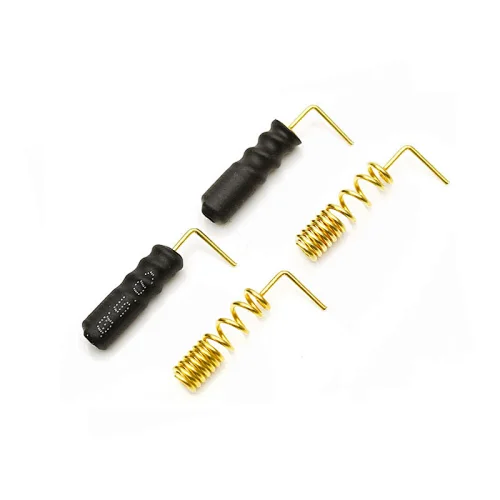

28mm GSM Spring Wire Winding Antenna
