Model NO.
WL-4GE310-3000
Quantity:
Category4G Magnetic Antenna
ModelWL-4GE310-3000
Frequency Range-MHz698-960/1710-2700
Gain-dBi12
V.S.W.R≤2
Nominal Impedance-Ω50
PolarizationVertical
Maximum Power-W50

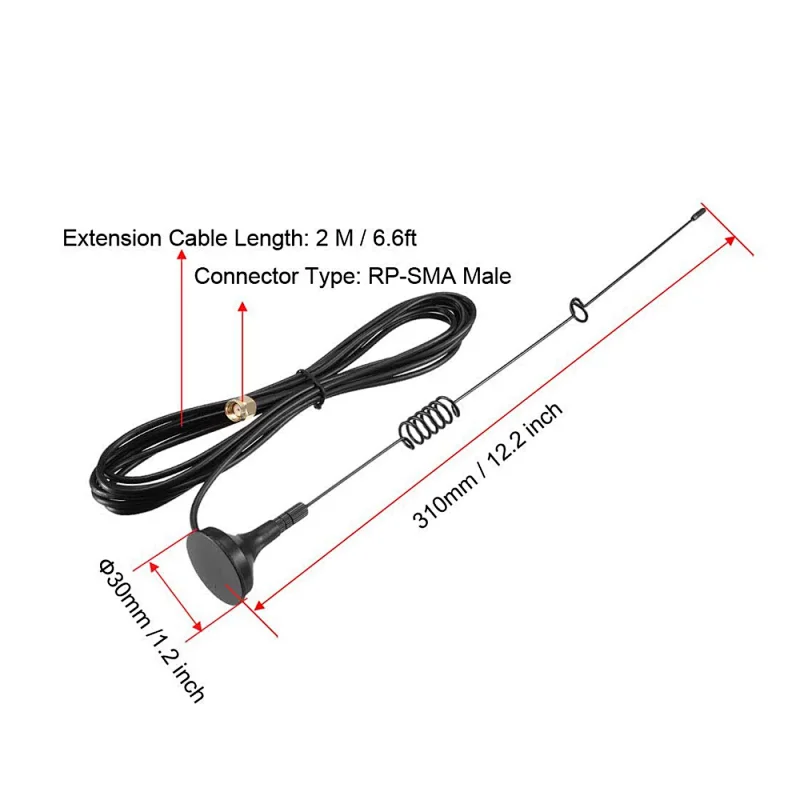

Dimensions-mm29*310

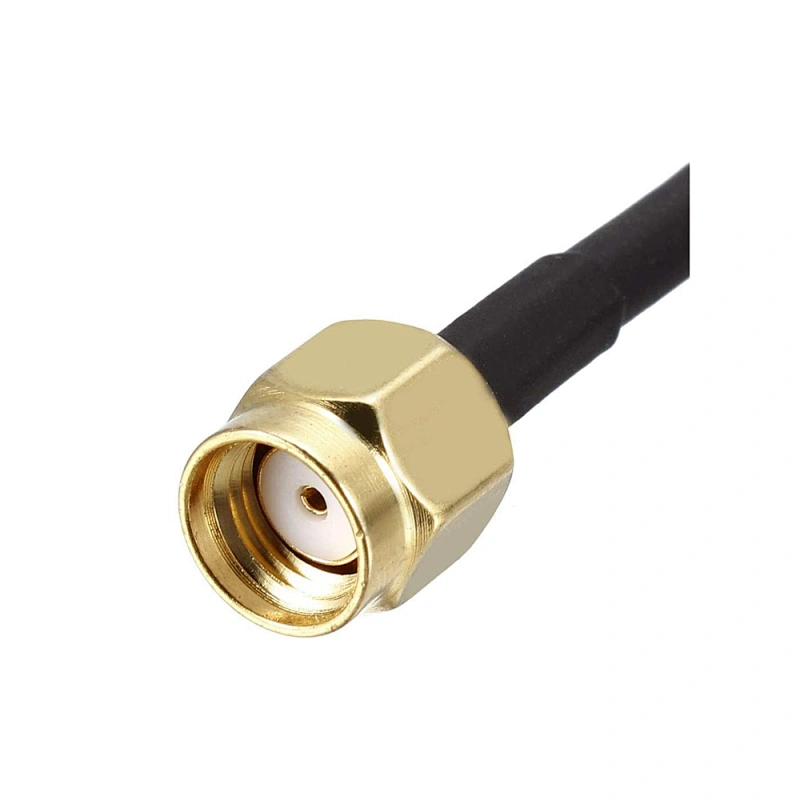

ConnectorSMA or Customized
Operating Temperature-40℃~+80℃
Storage Temperature-40℃~+85℃
Environmentally FriendlyROHS Compliant
